รายละเอียด
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface | 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) | |
| Fan Quantity | Fanless |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 9.26W (220V/50Hz) |
| Dimensions ( W x D x H ) | 17.3*7.1*1.7 in. (440*180*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 9.26W(220V/50Hz) |
| Max Heat Dissipation | 31.60BTU/h |
| PERFORMANCE | |
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10KB |
| QoS | 802.1p/DSCP QoS* |
| *Only for V12 and later version | |
| Green Technology | Yes |
| Transfer Method | Store-and-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |

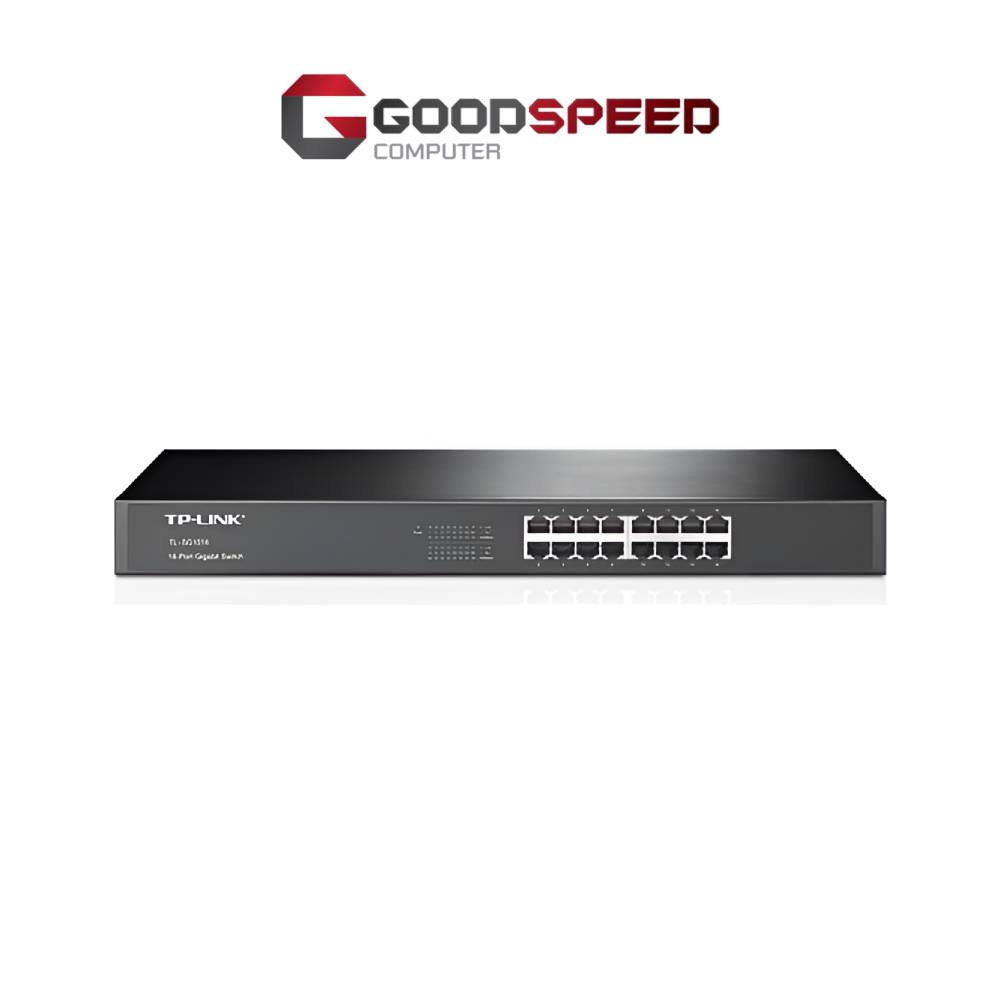

| Package Contents | 16-Port Gigabit Rackmount Switch |
| Power Cord | |
| Installation Guide | |
| Rackmount Kits | |
| Rubber Feet | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); |
| Storage Temperature: -40℃~70℃ (-40℉~158℉); | |
| Operating Humidity: 10%~90% non-condensing; | |
| Storage Humidity: 5%~90% non-condensing | |
| Warranty | Limited Lifetime |
